Laboratory particle counter for liquids with a viscosity of up to 1600 cSt with an external pressure supply and precise flow rate control

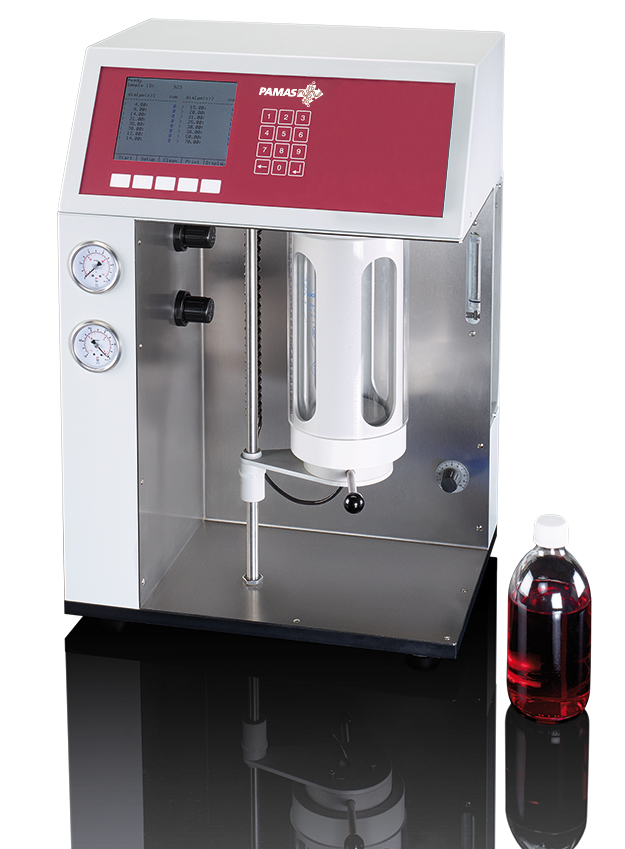

The PAMAS SBSS is a particle counting system for batch sampling. The PAMAS SBSS is the standard instrument used as a reference in many testing labs. The instrument may be programmed to measure a sample without the need of an operator, like pre-filling the internal dead volume, degassing the sample with vacuum, pressurising the sample for a number of measurement runs, and relieving pressure at the end. High accuracy and repeatability, fast purging and back flush possibility are the key benefits of the system.


  • Hydraulic oils
  • Turbine and insulation oils
  • Gear and engine oils
  • Water based hydraulic fluids
  • Phosphate ester based hydraulic fluids
  • Fuels
  • Highly volatile fluids
  • Parenterals, protein solutions according to common pharmacopoeias

Product features

  • Customisable measurement settings
  • 16 freely adjustable size channels (32 channels upon request)
  • Pressure sampling up to 10 bar
  • Optional vacuum cycle for sample degassing
  • Integrated magnetic stirrer
  • Use of any sample vessel with a max. diameter of 7 cm and a height of 18 cm
  • Measuring volume of 1 to 1,000 ml
  • Automatic sample flow and volume control via a stepper motor driven syringe module
  • Interchangeable syringes with 1 ml, 10 ml and 25 ml volume

Standards and methods

ISO 11171 ISO 4402 ISO 21501-3 ISO 21501-2 USP <1788> ISO 4406
SAE AS4059 NAS 1638 GOST 17216 CHARN* GJB 420B GJB 420A
NAVAIR 01-1A-17* SAE 749D* ISO/DIS 11218.2* ASTM D7647

*in connection with PAMAS PMA software

USP <787>** USP <788>** USP <789>** Ph. Eur. 2.9.19** JP XVI** KP X**
IP 2.5.8** BP XIII** IEC 60970 ASTM D6786 ISO 11500

**in connection with PAMAS USP software

Volumetric sensors

Available size ranges:
1–200 µm (ISO 21501-3)
1–400 µm (ISO 21501-3) option on request
1–100 µm (ISO 4402)
4–70 µm(c) (ISO 11171)
Max. particle concentration: 24,000 P/ml at 25 ml/min

Available size ranges:
1–200 µm (ISO 21501-3)
1–100 µm (ISO 4402)
4–70 µm(c) (ISO 11171)
Max. particle concentration: 120,000 P/ml at 25 ml/min

Available size ranges:
0,5–20 µm (ISO 21501-2)
1–20 µm (ISO 4402)
1.5–25 µm(c) (ISO 11171)
Max. particle concentration: 13,000 P/ml at 10 ml/min


PAMAS USP for pharmaceutical applications (21 CFR Part 11 compliant)
PAMAS PMA for the contamination control of clean liquids


Device with similar application
